Marden Edwards Overwrapping machinery range

Overwrapping Machinery

Automated Carton Wrapping Machines

Marden Edwards design and manufacture carton overwrapping machines ranging from low cost entry level machinery to high speed integrated systems.

TMX Series Overwrapping machine

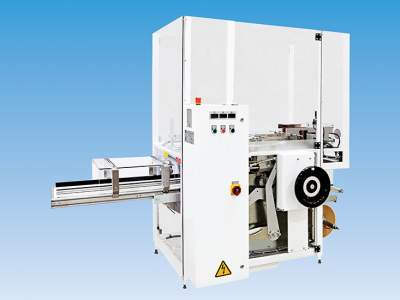

Evo Series Overwrapping machine

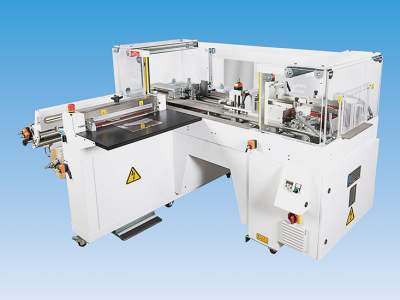

Semi Auto Series Overwrapper

Bespoke Carton Wrapping Machines Solutions

Marden Edwards can design and manufacture bespoke wrapping machinery solutions to suit your needs.  Whether your product is wrapped for presentation, multi packing or distribution purposes, Marden Edwards can provide a system tailored to meet your needs.

Alternative Eco-friendly Wrapping Material Options

Marden Edwards overwrapping machines have the capacity to wrap cartons using alternative eco-friendly materials. See below wrapping material options.

Recyclable BOPP Film

Biodegradable BOPLA Film

Biodegradable Paper

Model

Output speed

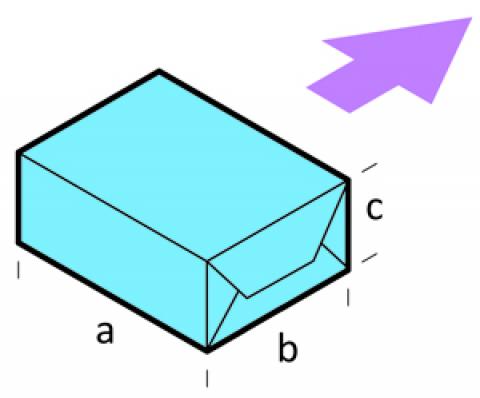

a - pack length

b - pack width

c - pack height

Semi-Auto Series

10 per minute *

60-300mm

40-200mm

25-100mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Model

Output Speed

a - pack length

b - pack length

c - pack length

EVO Series

45 per minute *

50-305mm

40-200mm

15-125mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Model

Output Speed

a - pack length

b - pack width

c - pack height

B Series

60 per minute *

50-305mm

25-250mm

10-150mm

B Wide

40 per minute *

50-450mm

55-300mm

10-150mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Model

Output Speed

a - pack length

b - pack width

c - pack height

BX Series

60 per minute *

50-305mm

25-250mm

10-150mm

BX Wide

40 per minute *

50-450mm

55-300mm

10-150mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Model

Output Speed

a - pack length

b - pack width

c - pack height

LX series

70 per minute *

50-305mm

25-250mm

10-150mm

LX wide

40 per minute *

50-450mm

55-300mm

10-150mm

LXH

90 per minute *

50-305mm

25-150mm

10-70mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Model

Output Speed

a - pack length

b - pack width

c - pack height

ME 120B Series

120 per minute *

50-330mm

28-190mm

10-110mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Model

Output Speed

a - pack length

b - pack width

c - pack height

TML Series

40 per minute *

45-300mm

37-200mm

20-100mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Model

Output Speed

a - pack length

b - pack width

c - pack height

TM Series

60 per minute *

45-300mm

40-200mm

15-125mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Model

Output Speed

a - pack length

b - pack width

c - pack height

TMX Series

70 per minute *

45-300mm

40-200mm

15-100mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Model

Output Speed

a - pack length

b - pack width

c - pack height

ME 300T Series

300 per minute *

70-180mm

40-70mm

10-50mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.
