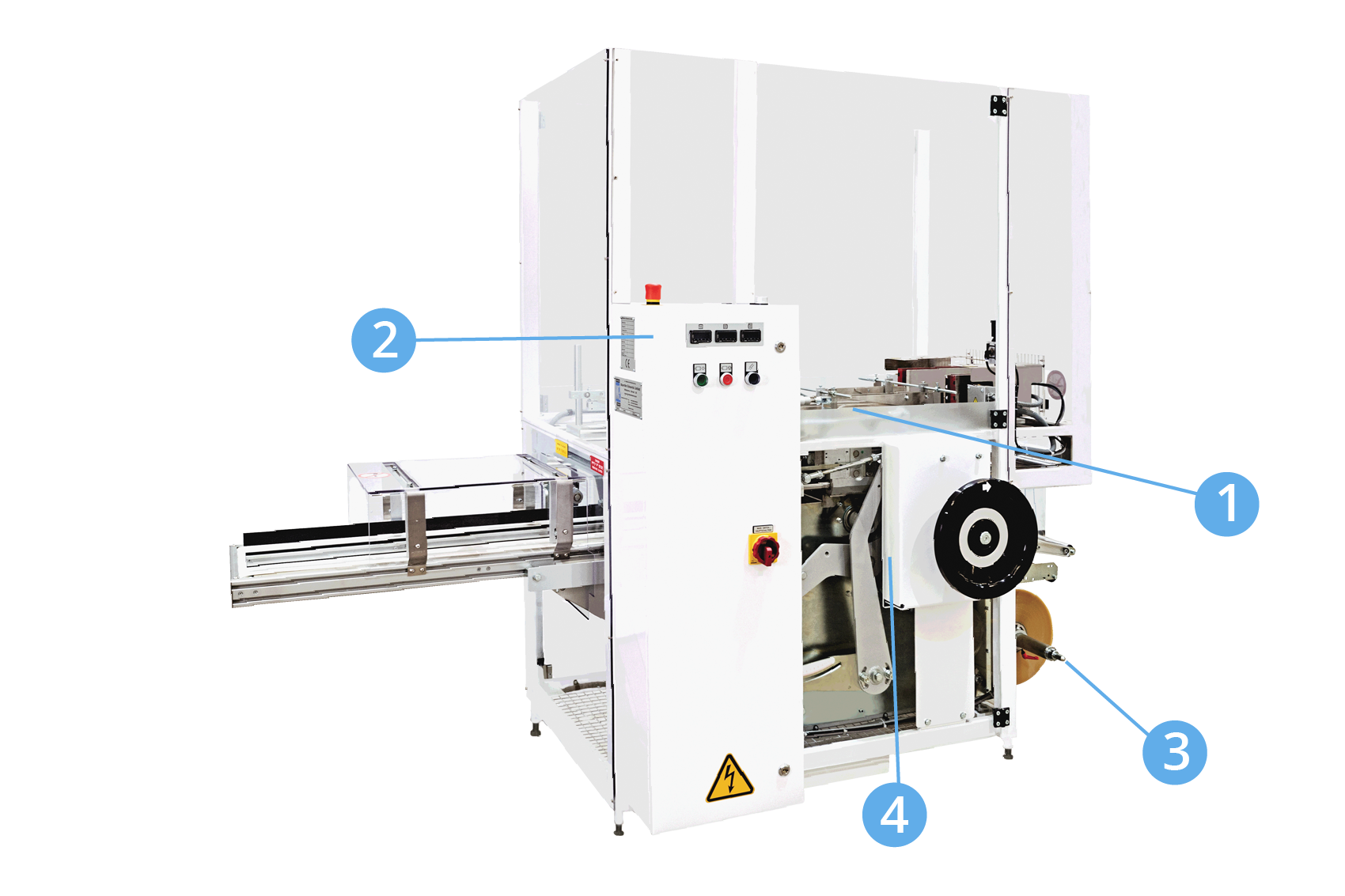

Evo Series Overwrappers

The Evo Series is designed as an entry level fully automatic base seal Overwrapping machine capable of wrapping speeds up to 45 packs per minute.  With relay logic control system and mechanical operation combined to offer a low maintenance, highly efficient production machine.

All our overwappers have the capability to run Eco-friendly wrapping materials

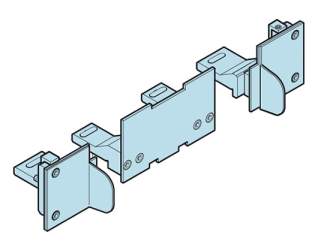

1. Change Part Tooling
1. Change Part Tooling

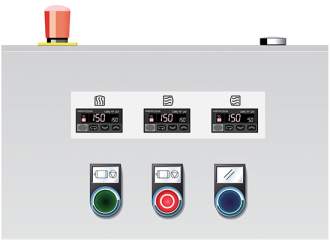

2. Operator Control Panel
2. Operator Control Panel

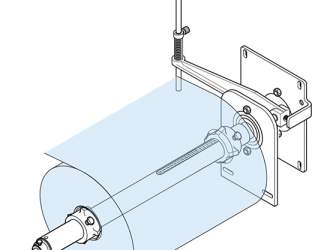

3. Side Loading Film Spindle
3. Side Loading Film Spindle

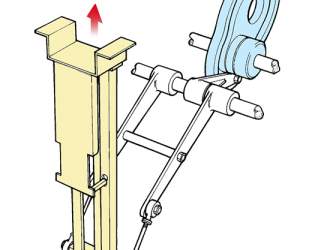

4. Cam Operated Mechanical Drive
4. Cam Operated Mechanical Drive

Alternative Eco-friendly Wrapping Material Options

Marden Edwards overwrapping machines have the capacity to wrap cartons using alternative eco-friendly materials. See below wrapping material options.

Recyclable BOPP Film

Biodegradable BOPLA Film

Biodegradable Paper

Machine Specification

Model

Output Speed

a - pack length

b - pack length

c - pack length

EVO Series

45 per minute *

50-305mm

40-200mm

15-125mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Machine Options

Tear Tape
Tear Tape
Dot End Seal
Dot End Seal
Print Registration
Print Registration

Wrapping Process

Evo Series Pack Wrapping Process Diagram
Evo Series Pack Wrapping Process Diagram
Evo Series Base Seal Overwrapping Diagram
Evo Series Base Seal Overwrapping Diagram

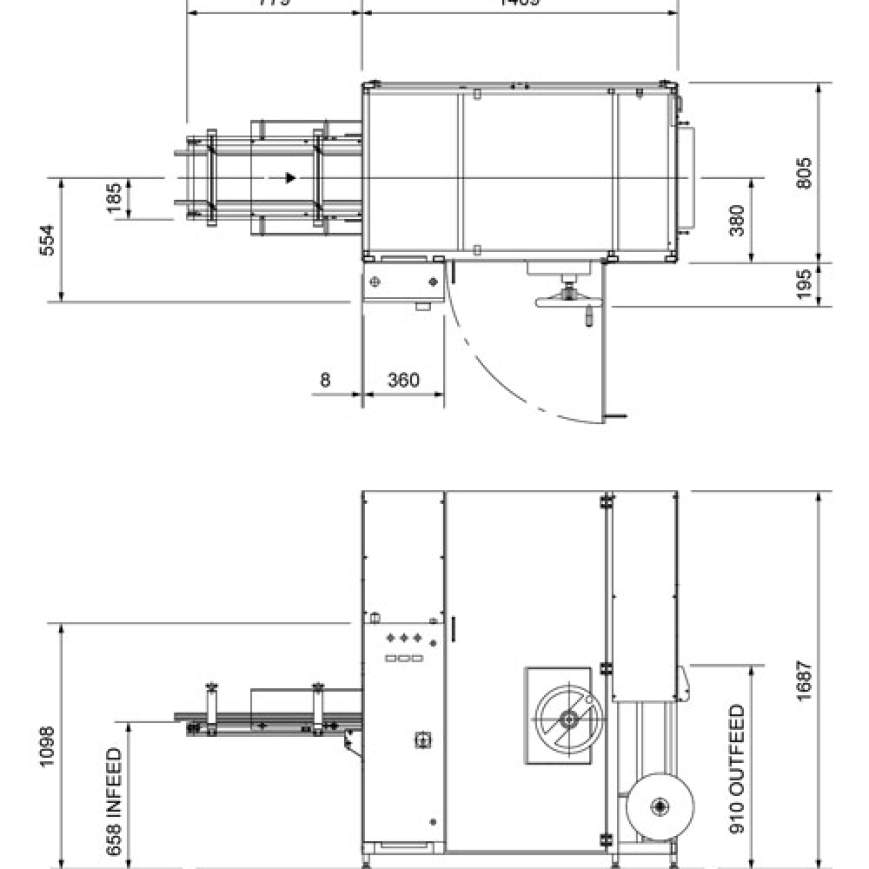

Engineering Drawings

Evo Series engineering drawings
Evo Series engineering drawings
×
